Product Catalog

Fully compatible with Raycus, Maxphotonics, BWT lasers and BOCI, Raytools, WSX, OSPRI cutting heads.

Protective window

1. High-Power Protective Window

High-purity JGS1 fused silica. Isolates slag splash and dust; stable under continuous 6–30kW.

ParameterStandard (6–12kW)High Power (20–30kW)
Dia. × Thickness20×2 / 27.9×4.1 / 30×5 mm34×5 / 36×6 mm
MaterialJGS1 fused silicaJGS1 fused silica
Coating1064nm anti-reflectionDouble-layer AR + anti-spatter
Transmittance≥99.5%≥99.8%
Copper nozzle

2. Precision Copper Nozzle

Oxygen-free copper, CNC precision machining. Uniform airflow, stable cutting seam.

ParameterSpecification
TypeSingle-layer / Double-layer / Thick-plate special
Aperture1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.5 mm
MaterialHigh-purity oxygen-free copper
Concentricity≤0.02mm
Ceramic ring

3. Laser Ceramic Ring

High-insulation alumina ceramic. Stable capacitance sensing, accurate height tracking.

ParameterSpecification
VersionStandard (6–12kW) / High-power (20–30kW)
Material95% high-purity alumina ceramic
Insulation≥10¹² Ω
CompatibilityBOCI, Raytools, WSX, OSPRI full series
Focusing lens

4. Focusing & Collimating Lens

Multi-layer anti-reflection coating. No dimming or defocusing on thick-plate cutting.

ParameterSpecification
Focal Length75 / 100 / 125 / 150 / 200 mm
Power Rating6 / 12 / 20 / 30 kW graded matching
CoatingMulti-layer anti-high-reflection, 1064nm

Power-Level Selection Guide

PowerRecommended PartsTypical Application
6–12kWStandard window (20–30mm), standard nozzle, standard ceramicThin / medium plate ≤16mm
20kWAnti-spatter lens (34mm), thickened nozzle, high-power ceramicMedium-thick plate 16–30mm
30kWExplosion-proof lens (36mm), 30kW special ceramic, double-layer nozzleThick plate 30–50mm, bevel

Supporting Auxiliary & Maintenance Parts

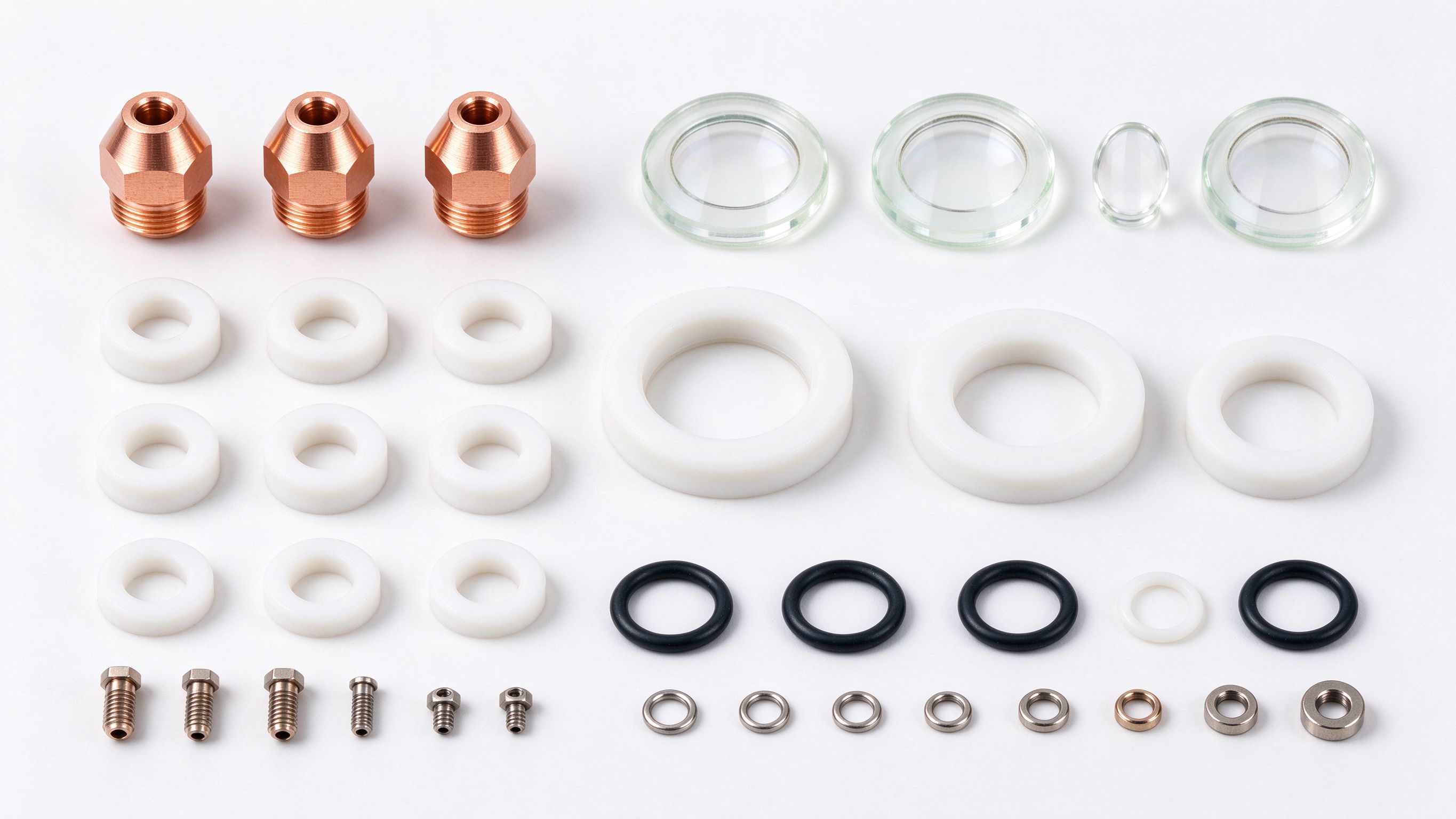

Consumables kit
